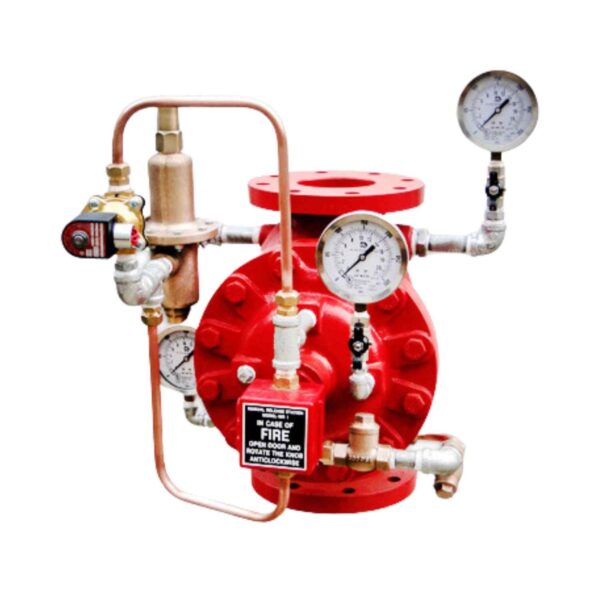

HDFIRE – Deluge Valve With Pressure Reducing Pilot Trim

Description

About Hdfire Deluge Valve with Pressure Reducing Pilot Trim

Hdfire deluge valve can be fitted with a pressure reducing pilot in order to reduce and manage outlet pressure, as per site design requirements. A deluge valve with pressure reducing pilot trim is a specialized type of fire protection valve designed to regulate water pressure in deluge fire suppression systems. This valve assembly comprises two main components: the deluge valve and the pressure reducing pilot trim. The deluge valve with Pressure Reducing Pilot Trim is the primary control device responsible for releasing water into the fire protection system when activated by fire detection devices. It remains closed under normal conditions, but upon detection of a fire, it opens rapidly to allow water flow into the sprinkler system. The pressure reducing pilot trim is an auxiliary device connected to the deluge valve. It consists of a pressure reducing valve and associated control components. The pressure reducing valve is designed to reduce and maintain the pressure of the water supply entering the deluge valve at a predetermined level. When the pressure in the system exceeds the setpoint, the pressure reducing valve modulates to reduce the pressure to the desired level. This ensures that the deluge valve operates within its specified pressure range, optimizing its performance and reliability. The deluge valve with pressure reducing pilot trim is commonly used in applications where the water supply pressure exceeds the maximum allowable pressure for the deluge valve or where pressure fluctuations are a concern. By maintaining consistent pressure levels, this valve assembly enhances the effectiveness and safety of deluge fire suppression systems in various industrial, commercial, and institutional settings.

• Pressure Reducing Pilot trim suitable for Deluge Valve Model H3
• Sizes: 4”, 6” and 8”
• The pressure reducing function maintains pre-set outlet pressure in Deluge Valve
• It automatically reduces a higher inlet pressure to a steady lower outlet pressure, regardless of varying inlet pressure and / or changing flow rate demand
• Hydraulically controlled diaphragm operated pilot valve with highly proven reliable design
• Wide range of downstream pressure can be set by turning the adjustment screw on the pressure control pilot valve (PCP)
